Roofing AZ30 Galvanized PPGL Steel Coil SPCE DX52

Name: Roofing AZ30 Galvanized PPGL Steel Coil SPCE DX52
Brand: HUIYI
Price: 1 USD

China Roofing AZ30 Galvanized PPGL Steel Coil SPCE DX52 wholesale

Brand Name : HUIYI

Model Number : SPCC ， SPCD ， SPCE ， DX51 / 52 / 53 / 54D + Z Q195 / 215 / 235 And etc

Certification : SGS,BV,ISO9001

Place of Origin : China

MOQ : 25 tons each thickness

Price : negotiated

Payment Terms : L/C, T/T

Supply Ability : 50000 tons per year

Delivery Time : 20-35days

Packaging Details : Standard exporting package.wrapped with waterproof paper.Then high density PE film.Then after fully covered with iron sheet

Color : Red,Green,Blue,Grey,White,Brown,Black,Yellow，Maroon，Orange ,etc.

Paint Brand : Akzo Nobel,Dulux,Nippon,PPG,Local

Front Paint Coating : 11-35um

Back Paint Coating : 5-20um

AL-ZN Coating : AZ30-AZ150

Corrugated width : 680mm or other required size

Thickness : 0.12--1.5mm

Coil ID : 508/610mm

Surface treatment : Coated, Galvanized, Printing ,galvalume

Application : Roofing, transportation, Building Construction, Boiler Plate

Standard : GB, ASTM, JIS, AISI, BS

Product name : Roofing PPGL Steel coil

Contact Now

Roofing PPGL STEEL COIL / Roofing Metal /Roofing prepainted Galvanised steel JIS G3312 standard

MAIN PARAMETERS of PPGL steel coil :

Thickness: 0.16mm-1.2mm

Width:750mm-1300mm

AZ coating: 30g/m²-120 g/m²

Primer layer(base coat):5-10um,

Fine coating layer(facade coat):10-25um.

The types of paints: polyester(PE), silicon modified polyester(SMP),polyvinylidene fluoride(PVDF),epoxy resin.

Coil weight:3-6mt

Coil inner diameter:508mm or 610mm.

Base Material: Hot-dip galvanized steel

STANDARD&GRADE of PPGL steel coil :

ASTM A755M-03 EN10169-2003 JIS G 3322:2007

Commercial Quality CS DX51D+AZ CGLCC

RANGE OF APPLICATION of PPGL steel coil :

Box ,Containers, Furniture And Office Equipments , Transportation Industry, Structural engineering ,building and elextical and lighting equipments and etc.

Characteristics of PPGL steel coil :

Color Coated Steel Feature Excellent Decorativeness , Bendability , Corrosion Resistance, Coating Adhesion And Color Fastness .

They Are Ideal Substitutes For Wood Panels In The Construction Industry Because Of Their Good Economic Features Such As Convenient Installation , Conservation Of Energy And Resistance To Contamination .

Color Steel Sheets With Surface Texturing On The Surface Has Extremely Superb Anti - Scratch Qualities , Can Be Produced In Various Colors , And Has Credible Quality And Can Be Mass - Produced Economically.

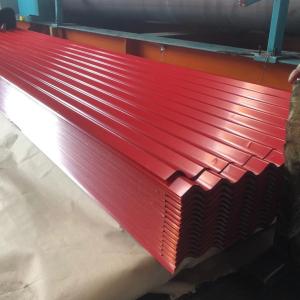

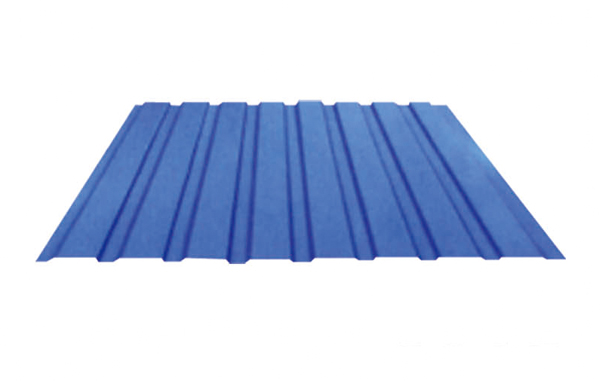

Common roofing size based on PPGL steel coil as below:

Roofing AZ30 Galvanized PPGL Steel Coil SPCE DX52

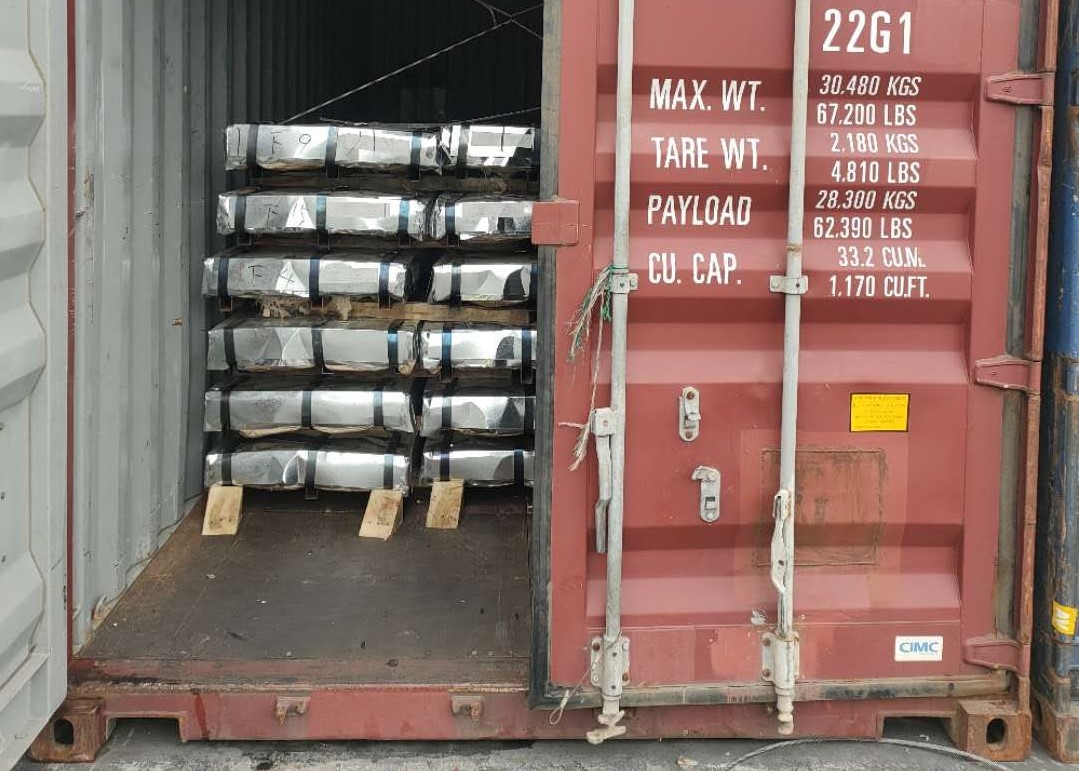

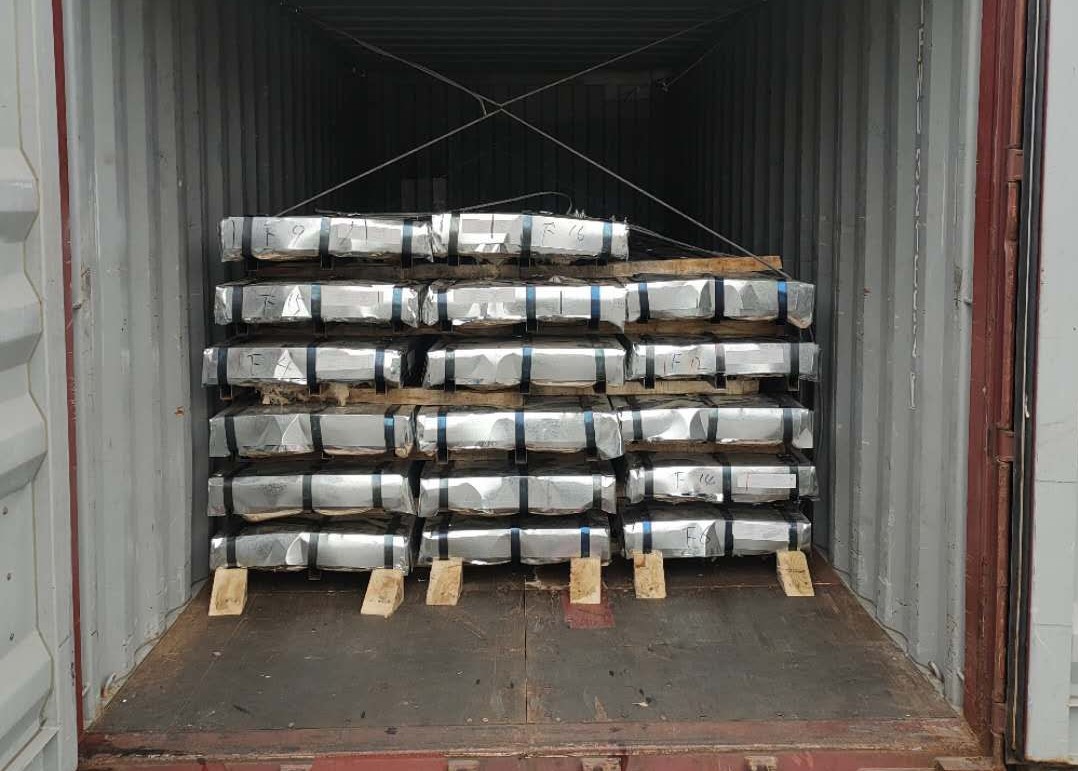

Here comes loading pictures for PPGL steel coil / sheet as below:

Roofing AZ30 Galvanized PPGL Steel Coil SPCE DX52
