Product Description Of Forklift
The forklift is an industrial handling vehicle, referring to various wheeled handling vehicles used for loading and unloading, stacking, and short-distance transportation of packaged palletized goods. It is commonly used for transporting large items in storage.
The technical parameters of forklifts are used to indicate the structural features and working performance of forklifts. The main technical parameters include: rated lifting capacity, load center distance, maximum lifting height, mast tilt Angle, maximum traveling speed, minimum turning radius, minimum ground clearance, as well as wheelbase and track width, etc.
Specification Of Forklift
| Manufacturer | Symbols for parts of forklift trucks | Unit |
|
| Model |
|
| CPQYD25 | CPQYD30 | CPQYD35 |
| Rated capacity |
| kg | 2500 | 3000 | 3500 |
| Load center |
| mm | 500 |
| Operation mode |
| | Seat-type |

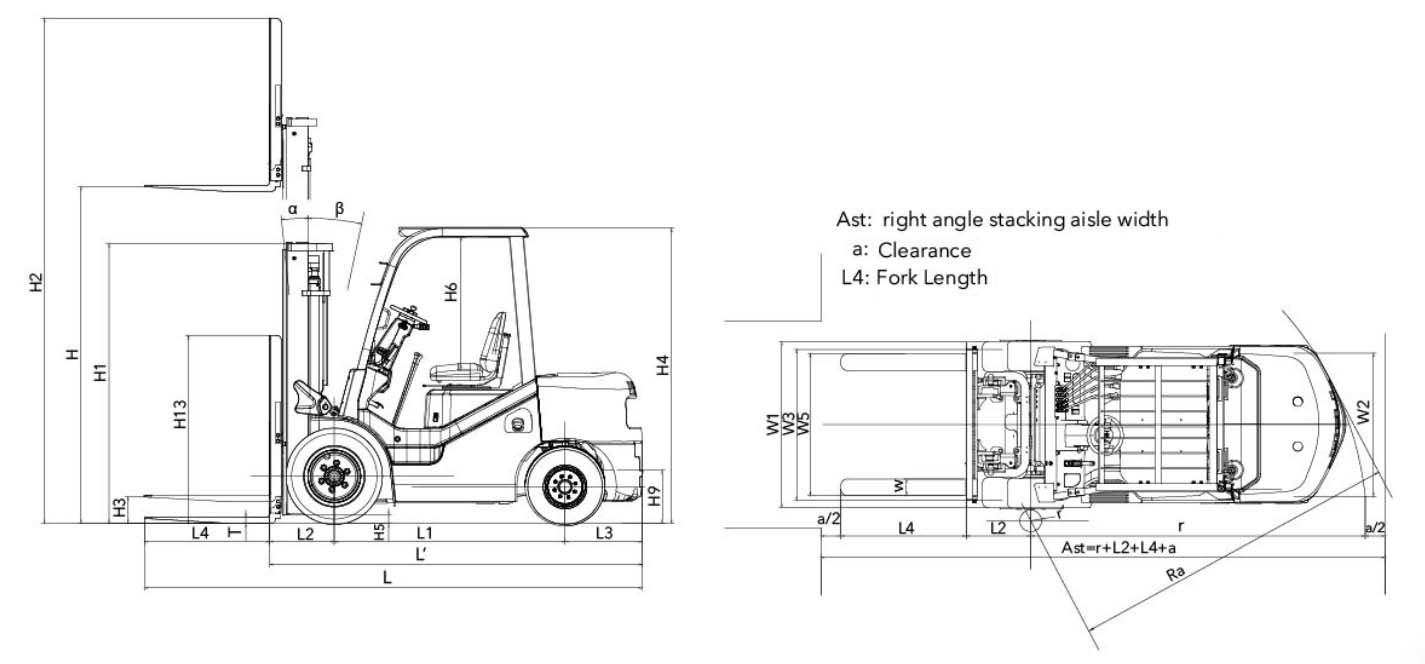

| Size (The content corresponding to the symbols refers to the figure below. ) |
| Lifting height (standard) | H | mm | 3000 | 3000 | 3000 |
| Mast overall height(Fork to the ground and mast be vertical) | H1 | mm | 2000 | 2065 | 2180 |
| Max.fork lifting height (with backrest) | H2 | mm | 4030 | 4245 | 4235 |
| Free lift height | H3 | mm | 165 | 160 | 170 |
| Overall height (Overhead guard) | H4 | mm | 2150 | 2170 | 2170 |
| Min. ground clearance (At the mast) | H5 | mm | 115 | 135 | 135 |
| Distance from seat surface to roof guard | H6 | mm | 1030 | 1030 | 1030 |
| Traction pin height | H9 | mm | 275 | 280 | 280 |
| Shelf height (from the fork surface) | H13 | mm | 1000 | 1227 | 1222 |
| Overall length (with fork/without fork) | (L/L') | mm | 3708/2638 | 3818/2748 | 3836/2766 |
| Wheelbase | L1 | mm | 1650 | 1700 | 1700 |
| Front overhang | L2 | mm | 478 | 478 | 496 |
| Rear overhang | L3 | mm | 515 | 570 | 570 |
| Overall width | W1 | mm | 1150 | 1225 | 1225 |
| Tread( Front wheel/rear wheel) | (W3/W2) | mm | 970/970 | 1000/970 | 1000/970 |
| Fork adjustment range (the external of the fork)) (Max./Min.) | W5 | mm | 1030/244 | 1060/250 | 1060/250 |
| Min. turning radius(Exterior) | r | mm | 2240 | 2400 | 2420 |
| Min. turning radius(Interior) | r² | mm | 180 | 200 | 200 |
| Min.right angle stacking aisle width | Ra | mm | 2280 | 2380 | 2400 |
| Mast tilt angle | ɑ/β | deg | 6/12 | 6/12 | 6/12 |
| Fork size | L4×W×T | mm | 1070x122x40 | 1070x125x45 | 1220x140x50 |
| Weight |
| Total weight | kg | 3740 | 4340 | 4700 |
| Weight distribution Fully Loaded (Front/Rear) | kg | 5440/800 | 6440/900 | 7380/820 |
| Weight distribution unladen (Front/Rear) | kg | 1520/2220 | 1700/2640 | 1850/2850 |
| Wheels and tires |
| Number of wheels X = drive wheels (Front/Rear) |
| 2x2 |
| Tire type (Front/Rear) |
| pneumatic tires |
| Tire size (Front/Rear) |
| 7.00-12-12PR/
6.00-9-10PR | 28x9-15-14PR/
6.50-10-10PR | 28x9-15-14PR/
6.50-10-10PR |
| Service brake |
| Hydraulic-Foot Pedal |
| Parking brake |
| MechanicalHand Lever |
| Model | Unit | CP(Q)(Y) 20 | CP(Q)(Y) D20 | CP(Q)(Y) 25 | CP(Q)(Y) D25 | CP(Q)(Y) 30 | CP(Q)(Y) D30 | CP(Q)(Y) 35 | CP(Q)(Y) D35 |
| Max. Drawbar Pull(Loaded/Unoaded) | KN | 15/12.5 | 16/12.8 | 15/12.3 | 16.5/12.4 | 17/13.5 | 18/13.5 | 18/13.5 | 20/13.5 |
| Max. Gradeability(Loaded/Unloaded) | % | 30/25 | 39/28 | 27/23 | 35/23 | 21/23 | 29/22 | 15/22 | 23/22 |
| Max. Traveling Speed(Loaded/Unloaded) | km/h | 17/19 | 17/19 | 19/20 | 19/20 |
| Lifting Speed (Loaded/Unloaded) | mm/s | 520/570 | 520/570 | 420/480 | 370/410 |
| Lowing Speed (Loaded/Unloaded) | mm/s | 450/500 | 450/500 | 450/550 | 350/400 |
| Engine Manufacturer/Model | / | GCT K25 |
| Rated Power/Rated Speed | Kw/rpm | 37.4/2400 |
| Max. Torque/Rated Speed | Nm/rpm | 176.5/1600 |
| Engine Cylinder Number | / | 4-89x100 |
| Engine Displacement | L | 2.488 |
| Engine Type | / | Gasoline or LPG |
| Battery(Voltage/Capacity) | V/Ah | 12/60 |
| Engine Fuel Tank Capacity | L | 60 |
Advantages of Forklift
- High Efficiency: With a high-performance engine and hydraulic system, it delivers strong power and precise control, speeding up loading, unloading, and transfers to boost overall logistics efficiency.
- Strong Load Capacity: Easily handles heavy goods, from standard pallets to large materials, meeting diverse workplace needs.
- Flexible Operation: Its excellent control system ensures agility, performing smoothly in narrow warehouse aisles, uneven docks, or varied factory setups.
- Stability & Safety: Built with high-strength steel, plus stable tires and drive systems, it prevents cargo shaking or tipping, ensuring safe transport and long equipment life.
- Eco-Friendly & Cost-Effective: Features an energy-saving power system to cut consumption and emissions. Its well-arranged components simplify maintenance, reducing costs and downtime.
Ideal for daily or high-intensity tasks, the CPQYD35 adds value with its efficiency, strength, flexibility, safety, and economy.
Application of Forklift
Forklifts are used in factories, warehouses, stations, docks, airports, ports, etc. for loading and unloading as well as transporting packaged goods. With the addition of other working tools, they can also be used for loading and unloading of loose-packed goods and other unpackaged packaged items.

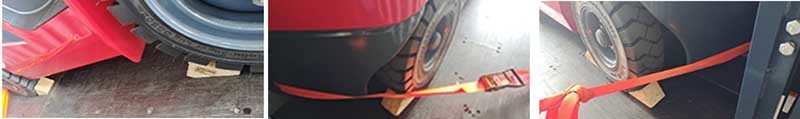

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. Is the CPQYD35 a counterbalanced forklift?
Yes, the CP(Q)(Y)D35 is a typical counterbalanced forklift. It features forks at the front for load handling and a counterweight at the rear to offset the weight of loads, ensuring stability during lifting and transportation—consistent with the design of the most commonly used counterbalance lift type.
2. What makes the CPQYD35 suitable for widespread use?
As a counterbalanced forklift, the CP(Q)(Y)D35 is widely used due to its versatility. Its 3.5-ton load capacity meets most industrial needs, while the LPG (liquefied petroleum gas) power (indicated by "Q") offers efficient operation with lower emissions, making it ideal for warehouses, farms, and logistics yards. The counterweight design eliminates the need for external support, allowing it to work in open spaces and narrow aisles.
3. Which is cheaper, gasoline or liquefied petroleum gas (LPG)?
Liquefied petroleum gas is usually cheaper than gasoline. On average, when used as fuel, the unit cost of liquefied petroleum gas is 10%-20% lower than that of gasoline.
|
|
